Switches and VLANS

Or why switch config is the most important step

1. Switches are the foundation of network communication

• Every device on a local network (PCs, printers, servers, etc.) typically connects through a switch.

• Without a properly configured switch, communication between devices — and to the outside world — can fail or be severely impaired.

2. They dictate how traffic flows

• Switches determine which devices can talk to each other and how efficiently.

• VLANs (Virtual LANs), trunk ports, and access ports are configured on switches, which control segmentation, isolation, and performance.

3. They enable or block key services

• If the wrong ports are blocked or misconfigured (e.g., trunk vs. access), devices might not get IPs, resolve DNS, or even ping their gateway.

• Spanning Tree Protocol (STP) settings on switches can affect network stability and prevent loops.

4. Upstream dependencies

• Many services (like DHCP or PXE booting) rely on proper switch port configs (e.g., DHCP relay, portfast).

• Switch misconfiguration often appears as “the network is down,” even if the services themselves are fine.

5. They're central in secure segmentation

• Isolating different parts of a network (e.g., dev, prod, guest) is done through VLANs on switches.

• Proper switch configuration is crucial for security and compliance.

---

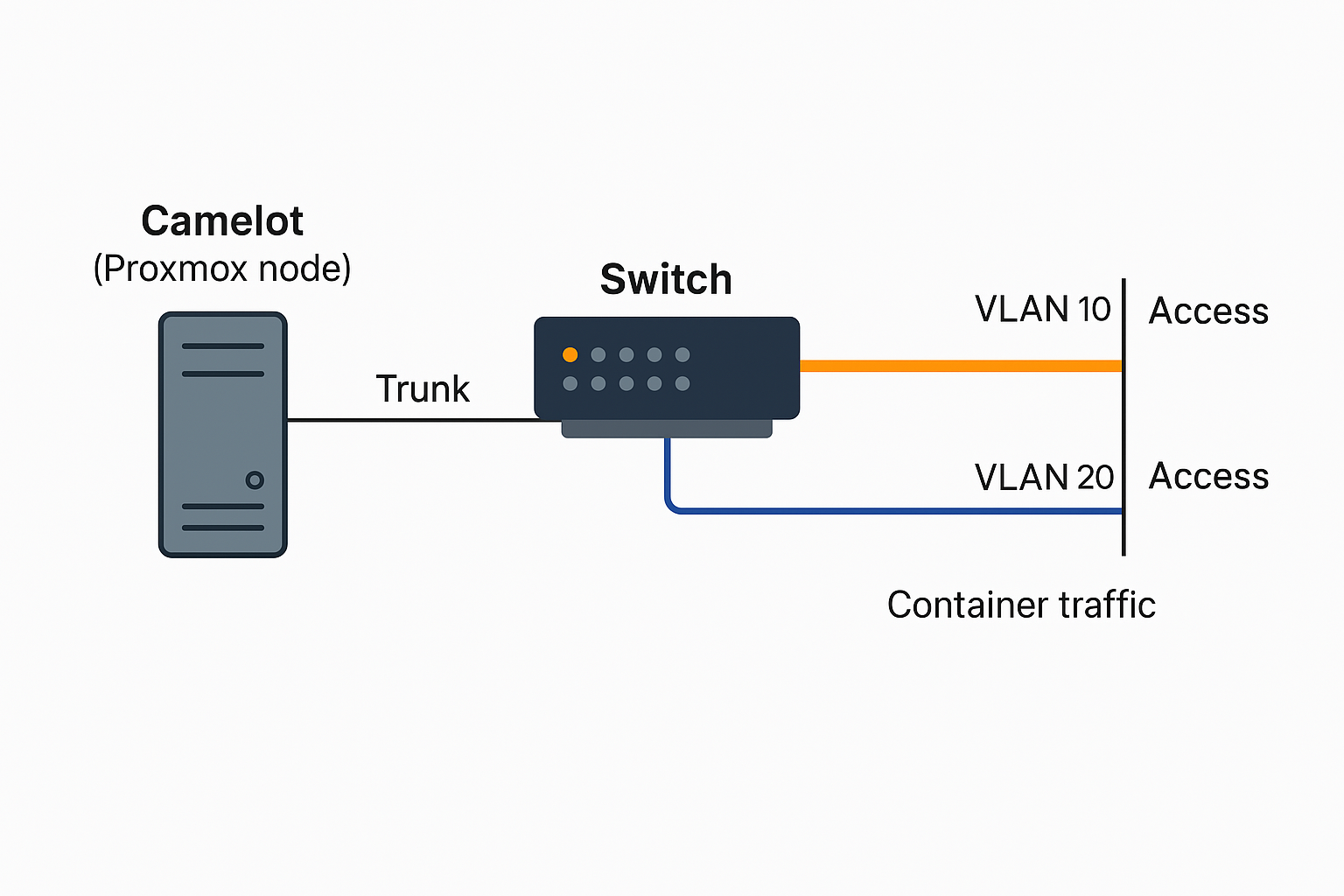

Scenario:

We want to separate admin traffic (like SSH and Proxmox management) from container traffic (like MediaWiki and Fileman) using VLANs.

Setup:

• Admin VLAN: VLAN 10 (192.168.10.0/24)

• Container VLAN: VLAN 20 (192.168.20.0/24)

• Camelot (Proxmox node) is plugged into a managed switch on port 3.



Switch Config (Port 3):

interface GigabitEthernet0/3
description Camelot trunk port
switchport mode trunk
switchport trunk allowed vlan 10,20

Proxmox Config (Camelot):

• Define two Linux bridges, each tied to a specific VLAN:

auto vmbr10
iface vmbr10 inet static
   address 192.168.10.10
   netmask 255.255.255.0
   bridge_ports eno1.10  # VLAN 10
   bridge_stp off
   bridge_fd 0
auto vmbr20
iface vmbr20 inet static
   address 192.168.20.10
   netmask 255.255.255.0
   bridge_ports eno1.20  # VLAN 20
   bridge_stp off
   bridge_fd 0



Result:

• Management happens over vmbr10 (VLAN 10).

• Containers use vmbr20 (VLAN 20) to reach the outside world or each other.

• If we don’t tag the switch or Proxmox correctly, nothing will work, and debugging will be a mess — which is why switch config is the most important step.
